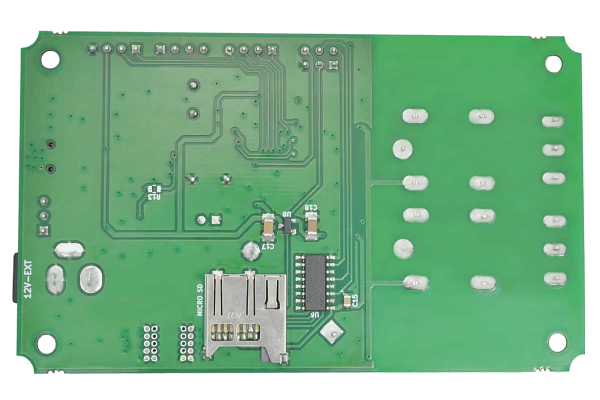

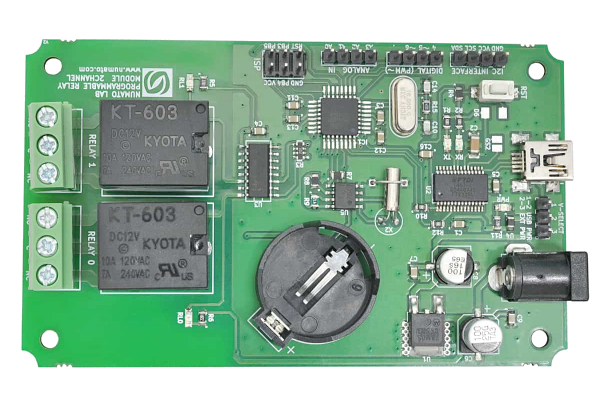

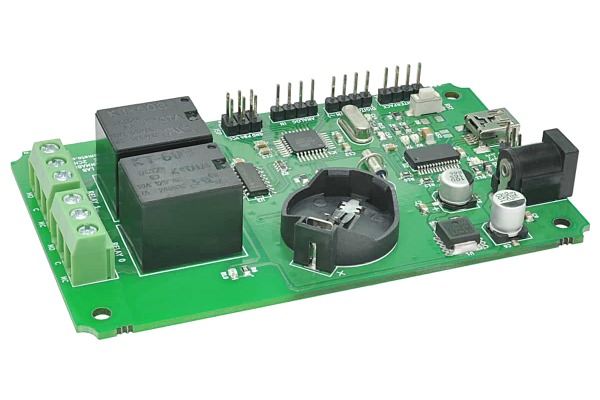

Numato Lab`s 2 Channel Programmable Relay Module is a feature rich product that can be programmed with Arduino IDE. The USB to Serial Chip FT232RL helps uploading sketches quickly to the board. This programmability gives this board ultimate flexibility compared to other relay modules where features depend on the pre-programmed firmware.
Features
| Title | Date | Download |
|---|---|---|
| User Manual | Feb 13 2018 | Download |
| View/Download 3D Model (STEP) | Feb 13 2018 | Download |
| Aug 30 2018 | Download | |
| Oct 31 2019 | Download | |
| Jan 21 2022 | Download | |
| Nov 10 2022 | Download |
Numato Lab`s 2 Channel Programmable Relay Module is a feature rich product that can be programmed with Arduino IDE. The USB to Serial Chip FT232RL helps uploading sketches quickly to the board. This programmability gives this board ultimate flexibility compared to other relay modules where features depend on the pre-programmed firmware. The onboard programmable relays, digital I/O’s, analog inputs, Real Time Clock(RTC) and Micro SD memory card slot makes this module useful for learning as well as making sophisticated applications.
Features
Applications
| Weight | 0.20 lbs |
|---|---|
| Dimensions | 5.00 x 3.00 x 2.00 in |
| Number Of Relays |
2 |
| Relay Type | |
| Max Relay Current Rating |
10A |
| Number Of GPIOs (Max) |
10 |
| Analog Inputs |
4(Multiplexed with IOs) |
| Analog Input Resolution |
10 Bits |
