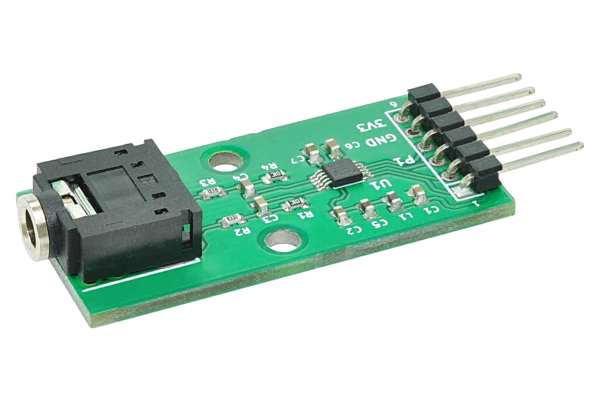

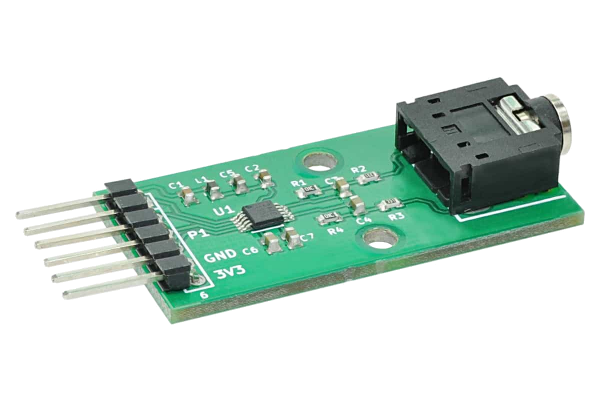

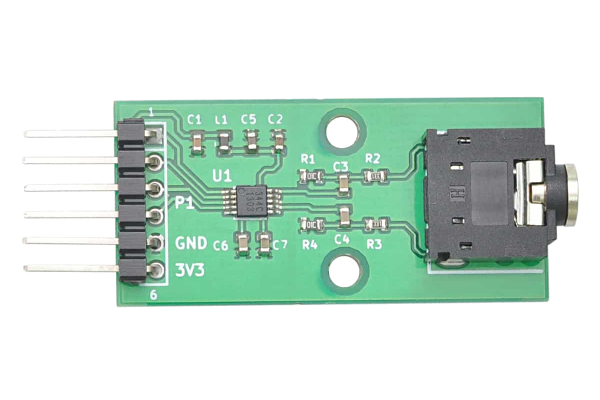

This module features CS4344, a 24-Bit, 192 kHz Stereo D/A Converter which enables producing high quality stereo audio from a digital source. It supports all major audio data interface formats. This module is designed to be used with Numato Lab’s FPGA/Microcontroller boards featuring a 2×6 pin Expansion connector. It can also be used with other boards and connector types by using manual wiring.This product is compatible with most of Numato Lab’s FPGA boards.
Features
| Title | Date | Download |
|---|---|---|
| User Manual | Feb 13 2018 | Download |
| Jan 21 2022 | Download | |
| Nov 10 2022 | Download |
This module features CS4344, a 24-Bit, 192 kHz Stereo D/A Converter which enables producing high quality stereo audio from a digital source. It supports all major audio data interface formats. This module is designed to be used with Numato Lab’s FPGA/Microcontroller boards featuring a 2×6 pin Expansion connector. It can also be used with other boards and connector types by using manual wiring.This product is compatible with most of Numato Lab’s FPGA boards.
Features
Applications
| Weight | 0.10 lbs |
|---|---|
| Dimensions | 5.00 x 3.00 x 2.00 in |
| Audio Out |
Analog |
| CODEC Device |
CS4344 |
| Resolution |
24 Bit |
| Power Supply |
3.3V |
| Language/Technology | IDE/Compiler | Type | OS | Download |
|---|---|---|---|---|
| Verilog | Xilinx ISE | CS4344 Stereo Audio | Download |
