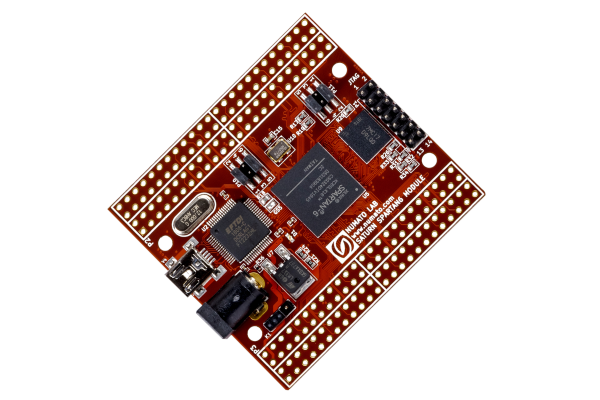

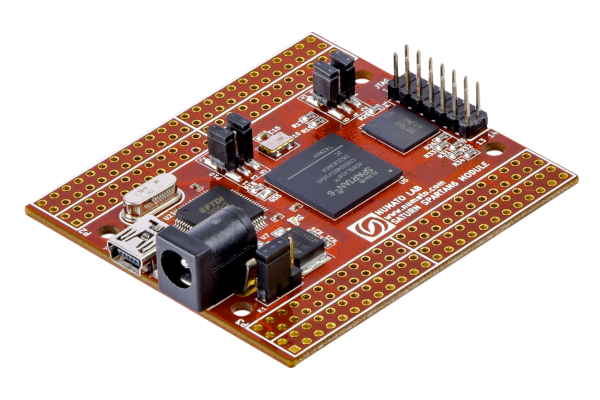

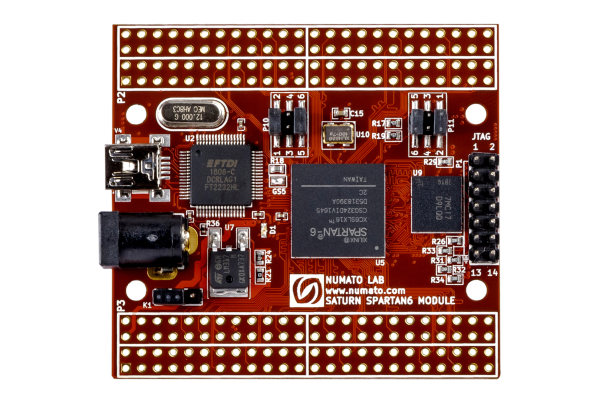

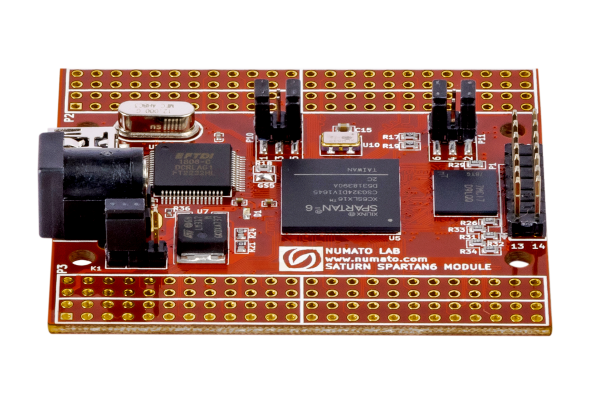

Saturn is an easy to use USB FPGA module with DDR SDRAM featuring Xilinx Spartan-6 FPGA. With the compact form factor and IO accessibility on industry standard 2.54mm (100mil) headers, Saturn is a great choice for embedding FPGA, DDR and USB in your system with ease. With Saturn, the complex parts of the design are already taken care for you so you can focus on your own application and achieve faster time to market.
Saturn is an easy to use FPGA Development board featuring Xilinx Spartan-6 FPGA. Saturn is designed to be suitable for a wide variety of applications such as OEM integration, Prototyping, Experimenting and learning system design with FPGAs etc.. This development board features Xilinx XC6SLX series FPGA with FTDI’s FT2232H Dual-Channel USB device. The high speed USB 2.0 interface provides fast and easy configuration download to the on-board SPI flash. No programmer or special downloader cable is needed to download the bit stream to the board.
Features
Applications
| Weight | 0.12 lbs |
|---|---|
| Dimensions | 5.00 x 3.00 x 2.00 in |
| FPGA Device |
XC6SLX16, XC6SLX45 |
| Header Type and IO Headers |
Male Header on Bottom, Female Header on Top, Ship Separate |
| Memory | |
| Number Of GPIOs (Max) |
150 |
| Configuration Options |
JTAG, USB |
| Primary Clock Frequency |
| Language/Technology | IDE/Compiler | Type | OS | Download |
|---|---|---|---|---|
| Verilog | Xilinx ISE | 16x2 LCD Display | Saturn IO Breakout Module Alphanumeric LCD Displa | Download |
| Verilog | Xilinx ISE | LEDs | Saturn IO Breakout Module LED Expansion Module - | Download |
| Verilog | Xilinx ISE | Push Button Switch | Saturn IO Breakout Module Push Button Switch Expan | Download |
| Verilog | Xilinx ISE | Seven Segment LED Display | Saturn IO Breakout Module Seven Segment LED Displ | Download |
| Verilog | Xilinx ISE | 8Bit VGA | Saturn IO Breakout Module VGA Display Expansion M | Download |
| Verilog | Xilinx ISE | LM4550 AC97 Audio | Saturn IO Breakout Module LM4550 AC97 Expansion Mo | Download |
| Verilog | Xilinx ISE | CS4344 Stereo Audio | Saturn IO Breakout Module CS4344 Audio Expansion M | Download |
