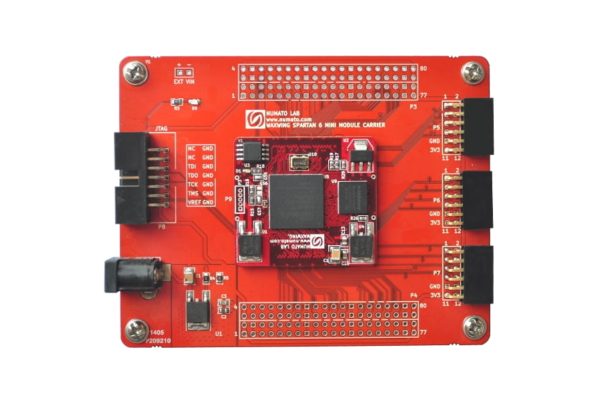

Waxwing is an easy to use FPGA module featuring Xilinx Spartan-6 FPGA with onboard DDR memory and high density connectors for external IO interface. The carrier board makes it easy to access the IOs of the FPGA without the hassles of working with high density connectors. On the carrier board IOs are broken out in to 100mil standard headers for easy access. Please contact us for more details.
Features
| Title | Date | Download |
|---|---|---|
| User Manual | Feb 13 2018 | Download |
| Numato Lab Board support files for EDK BSB wizard | Feb 13 2018 | Download |
| Oct 22 2021 | Download | |
| Jan 21 2022 | Download | |
| Nov 10 2022 | Download |
Waxwing is an easy to use FPGA module featuring Xilinx Spartan-6 FPGA with onboard DDR memory and high density connectors for external IO interface. The carrier board makes it easy to access the IOs of the FPGA without the hassles of working with high density connectors. On the carrier board IOs are broken out in to 100mil standard headers for easy access. The carrier board also provides easy access to JTAG signals on a standard Xilinx Platform Cable compatible header. Customization services available for OEM customers. Please contact us for more details.
Features
| Weight | 0.20 lbs |
|---|---|
| Dimensions | 5.00 x 3.00 x 2.00 in |
| FPGA | |
| Configuration Options |
JTAG |
| Number Of Clock Sources |
1 |
| Primary Clock Frequency | |
| Number Of GPIOs (Max) |
134 |
| Language/Technology | IDE/Compiler | Type | OS | Download |
|---|---|---|---|---|
| Verilog | Xilinx ISE | 16x2 LCD Display | Alphanumeric LCD Display Expansion Module | Download |
| Verilog | Xilinx ISE | 8Bit VGA | VGA Display Expansion Module | Download |
| Verilog | Xilinx ISE | LM4550 AC97 Audio | LM4550 AC97 Expansion Module | Download |
| Verilog | Xilinx ISE | CS4344 Stereo Audio | CS4344 Audio Expansion Module | Download |
