Description

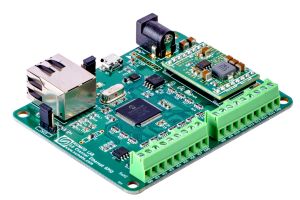

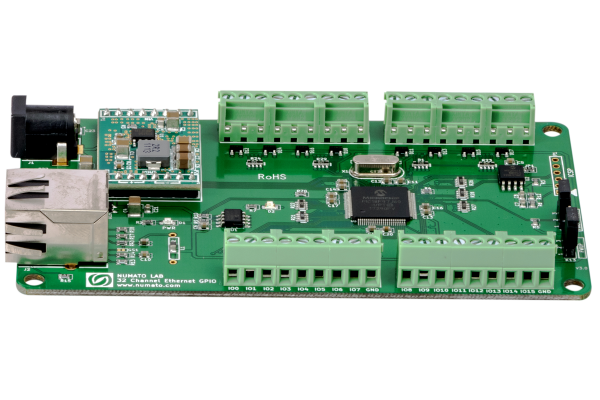

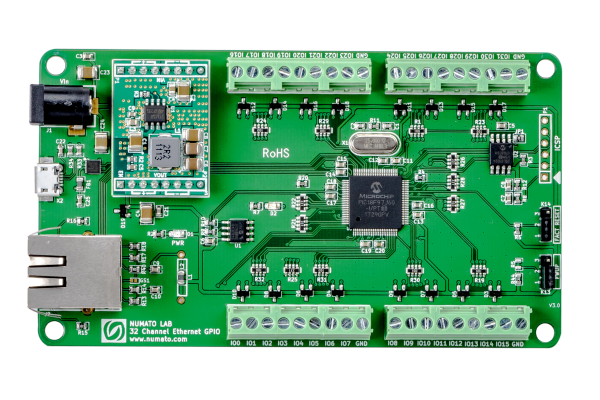

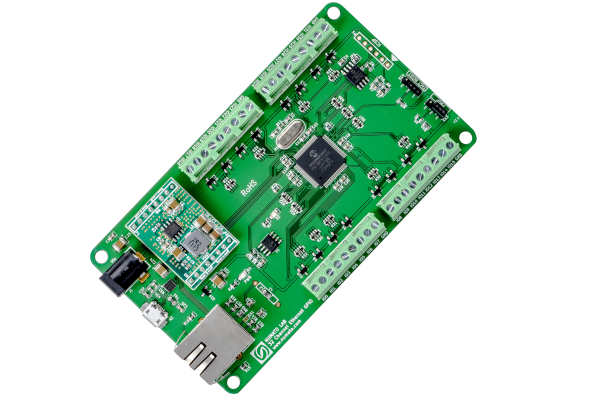

Numato’s 32 Channel Ethernet GPIO module is low cost easily deployable solution for connecting your PC to other electronic circuitry through network. This GPIO module can be accessed through a simple web interface or Telnet. Ease of use and wider operating system compatibility are the primary goals behind this product’s design. This simplicity allows use of off-the shelf Terminal Emulation programs such as HyperTerminal and TeraTerm for controlling the module with a simple set of human readable commands through Telnet/Web page. For power users, this module can be controlled by writing programs in various programming languages.
Features

• 32 TTL (3.3V) compatible GPIOs available
• 14 Analog input channels (Multiplexed with GPIOs)
• 10 Bit Analog input resolution
• All GPIOs can be individually configured as input or output
• Can be controlled by using simple web interface or Telnet
• No TCP/IP protocol knowledge required
• 2,25,8ma Source/Sink capacity(depend on the IOs).
• Microcontroller: Microchip PIC18F97J60(1-Mbit Flash Microcontroller with 10Mbps Ethernet communication peripheral).
• Memory: Microchip 25LC1024 serial EEPROM provides 1024 Kbits of storage for both web pages and nonvolatile configuration.
• MAC Address: Separate Serial EEPROM(24AA02E48) with Globally Unique value used as MAC Address for the device.
• Reset Jumper: Resets the board to factory defaults.
• Password protected Web console and Telnet communication interface.
• LED indication for Power.

Applications

• Home Automation
• Lighting Control
• Garden Equipment Control
• Industrial Automation
• Test Fixtures
• DIY and Hobby
