104.95

BPI-CM4


Description

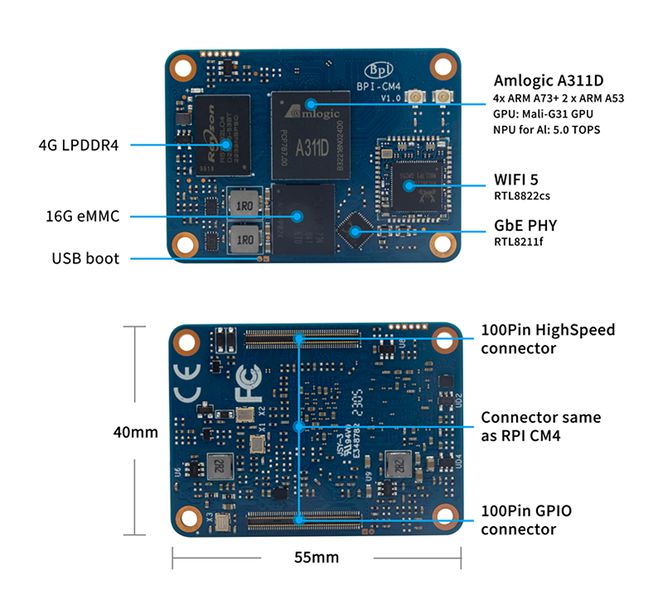

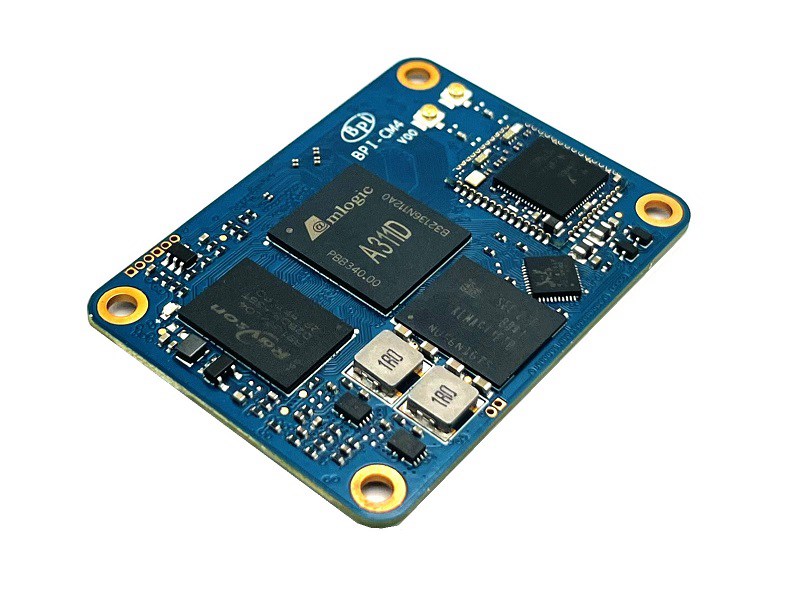

BananaPi BPI-CM4 new design with Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU,NPU for AI at 5.0 TOPS, support Camera and MIPI-CSI interface ,HDMI output,2 Gigabit port . 4G RAM and 16 GB eMMC flash.

Key Features

  • Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU
  • NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS
  • 4GB LPDDR4 RAM
  • 16GB eMMC flash (Max 128G)
  • support MIPI DSI Display interface
  • support MIPI CSI Camera interface
  • Minipcie
  • HDMI output
  • 26 PIN GPIO
  • support Android and Linux system.
  • Size: 55x40mm

Category Banana Pi
BPI-CM4

Downloads

Title Date Download
BPI-CM4 User Manual Jul 05 2023 Download
Jul 05 2023 Download

Description

  • SoC – Amlogic A311D hexa-core processor with 4x Arm Cortex-A73 cores, 2x Arm Cortex-A53 cores, Arm Mali-G52 MP4 (6EE) GPU with OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support, 5 TOPS NPU
  • System Memory – 4GB LPDDR4
  • Storage – 16GB eMMC flash (option up to 128GB), MicroSD card slot
  • Video interfaces
    • HDMI 2.1 output up to 4Kp60
    • MIPI DSI connector for display
    • MIPI CSI connector for camera
  • Networking – 1x Gigabit Ethernet ports one via RTL8211F GbE transceiver
  • USB – 2x USB 2.0 Type-A port, 1x USB Type-C port
  • Expansion – 26-pin GPIO header
  • Debugging – 3-pin header for serial console
  • Misc – 2x buttons.
  • Power Supply – Via USB-C port or pin header

Additional information



Key Features

  • Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU
  • NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS
  • 4GB LPDDR4 RAM
  • 16GB eMMC flash (Max 128G)
  • support MIPI DSI Display interface
  • support MIPI CSI Camera interface
  • Minipcie
  • HDMI output
  • 26 PIN GPIO
  • support Android and Linux system.
  • Size: 55x40mm
