MediaTek MT7995AV chipset
32-bit RISC-V MCU for Wi-Fi protocols and Wi-Fi offload
Embedded SRAM and ROM
UART interface with hardware flow control
2 PCIe 3.0 Interface, 2-lane
Dimensions – 82 x 51 x 4.2mm
IEEE 802.11 a/b/g/n/ac/ax/be compliant
Frequency band 2.4GHz
Bandwidth: 20 and 40MHz
2T2R
Frequency band 5GHz
Bandwidth: 20, 40,80, and 160MHz
3T3R 3ss
Frequency band 6GHz
Bandwidth: 20, 40,80,160 and 320MHz
3T3R 3ss
Tr-Band Triple Concurrent (TBTC)
PHY rate :up to 13700 Mbps/9500 Mbps
MU-MIMO TX and RX
MU-OFDMA TX and RX
STBC, LDPC, TX beamformer and RX beamformee
Greenfield mode, mixed mode, and legacy mode
Security: WFA WPA, WPA2, WPA3 personal, WPS2.0
QoS: WFA WMM and WMM-PS

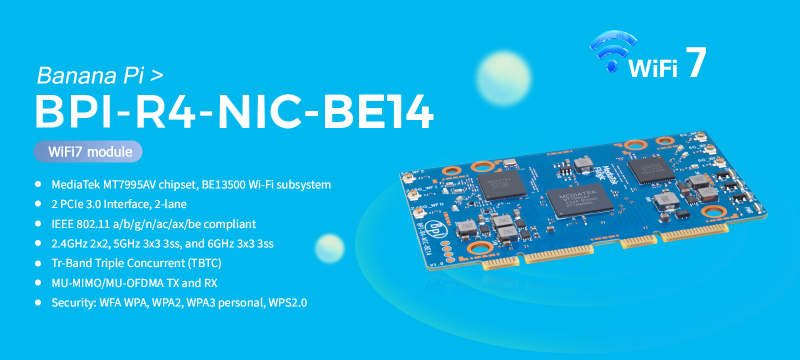

BPI-R4-NIC-BE14 is a 51x82mm WiFi7 module with MediaTek MT7995AV supports Wi-Fi7 technology and feature IEEE802.11a/b/g/n/ac/ax/be compliant,2.4GHz 2x2, 5GHz 3x3 3ss, and 6GHz 3x3 3ss BE13500 Wi-Fi subsystem. The MT7995AV offers feature-rich wireless connectivity at high standards and delivers reliable, cost-effective throughput from an extended distance.
