Description

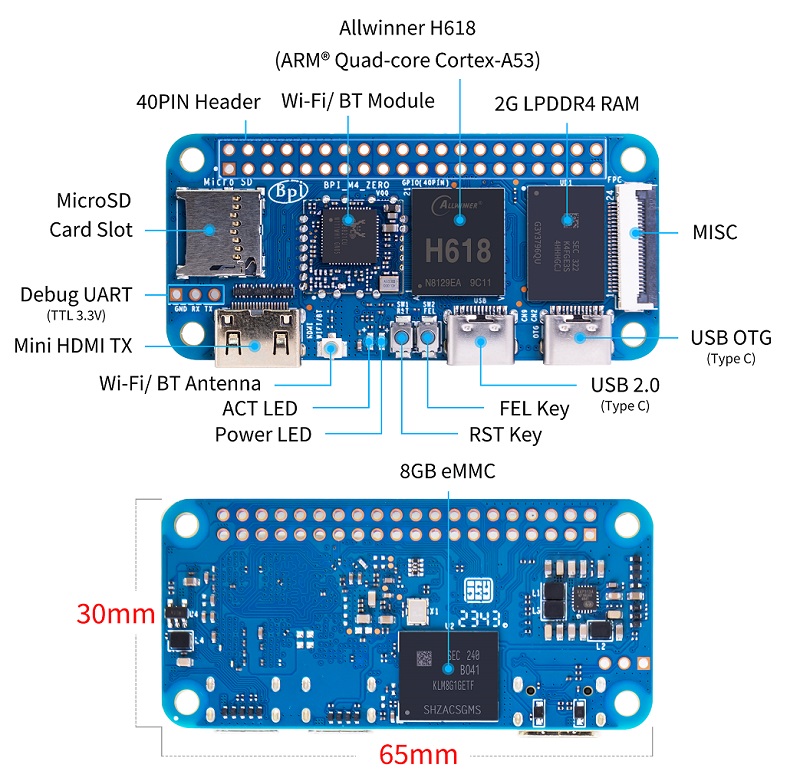

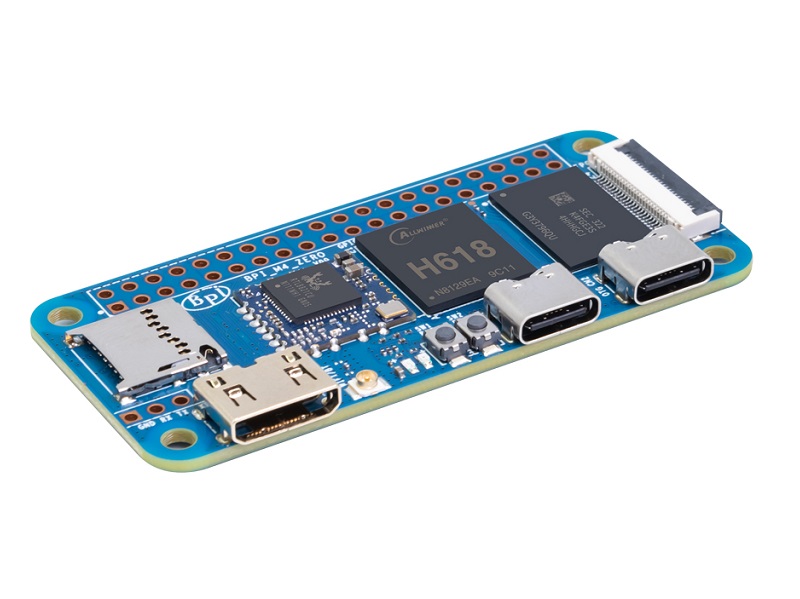

Banana Pi BPI-M4 Zero is the successor model of M2 Zero. It has a huge improvement in performance. The SOC is upgraded to H618 and the CPU frequency is increased by 25%. The memory is upgraded to DDR4, the capacity is quadrupled, and 8G eMMC is added. It supports 5G WiFi, and the USB interface has also been upgraded to type-C.
It has same form factor and 40-pin connector as the Raspberry Pi Zero W, and it can fit most of the RPI Zero W cases and accessories.
Additional information
| CPU |
Allwinner H618, Quad-core ARM Cortex™-A53 processor, 64-bit, up to 1.5GHz |
| GPU |
ARM Mali G31 GPU |
| Memory |
2 GB LPDDR4 |
| Storage |
8G eMMC flash |
| SD card |
MicroSD card slot, SDIO3.0 |
| Wireless |
2.4G/5G WiFi and Bluetooth 4.2 |
| HDMI |
1x miniHDMI 2.0a (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output |
| USB |
1x USB2.0 Type-C HOST, 1x USB2.0 Type-C OTG |
| 40-pin header |
28 pins GPIO and Power (+5V, +3.3V and GND) |
| UART, SPI, TWI/I²C, PWM, PCM/I²S |
| 24-pin FPC |
0.5mm pitch FPC connector? 1x USB2.0, 1x IR, 1x 100Mbps Ethernet |
| 9 pins GPIO, UART,TWI/I²C, PWM, PCM/I²S |
| Buttons |
Reset, FEL |
| LED |
Power Status and Activity status |
| Power |
5V@3A via USB Type-C |
| Size , Weight |
65mm × 30mm , 30g |
| |
