Description

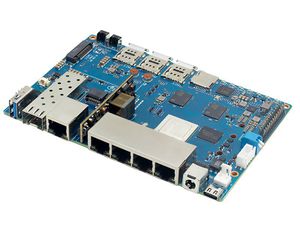

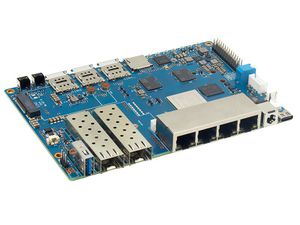

Banana Pi BPI-R4 Router board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 design ,4GB DDR4 RAM,8GB eMMC,128MB SPI-NAND flash onboard, also have 2x 10Gbe SFP, 4x Gbe network port,with USB3.2 port,M.2 support 4G/5G/NVME SSD.2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card). It is a very high performance open source router development board.
Additional information
| CPU |
MediaTek MT7988A (Filogic 880) Quad-core Arm Corex-A73,1.8GHz processor |
| SDRAM |
4 GB DDR4 |
| On board Storage |
MicroSD (TF) card,128MB SPI NAND, 8GB eMMC |
| GPIO |
26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. |
| On board Network |
4 Port 10/100/1000Mbps Ethernet |
| SFP |
2x10G SFP |
| mini PCIE |
2x miniPCIe slots with PCIe3.0 2lane interface for BPI Wi-Fi 7 NIC (Network Interface Card) |
| M.2 interface |
1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G,1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD |
| USB |
1xUSB 3.2 slot |
| Buttons |
Reset button,WPS botton, boot switch |
| Leds |
Power status Led and RJ45 Led |
| DC Power |
12V/5.2A or 19V 3.2A(The power consumption will not exceed 10W without any peripheral equipment, and 12V/2A can be used.) |
| Sizes |
100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2 |
| Weight |
250g |
