Prodigy ZRX16/ZRX32/ZRX64 is an Input/Output module that supports Modbus RTU over USB and RS485 and Modbus TCP over Ethernet. The USB/Ethernet host interface makes connecting this device to any Windows, Linux, Mac machines or embedded computers such as RPi an easy task. Support of industry standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus – RTU/TCP.
Features
| Title | Date | Download |
|---|---|---|
| User Manual | Aug 31 2018 | Download |
| Driver for Prodigy | Aug 31 2018 | Download |
| View/Download 3D Model (STEP)-ZRX16 | Aug 31 2018 | Download |
| View/Download 3D Model (STEP)-ZRX32 | Aug 31 2018 | Download |
| View/Download 3D Model (STEP)-ZRX64 | Aug 31 2018 | Download |
| Aug 31 2018 | Download | |
| Nov 30 2020 | Download | |
| Feb 03 2022 | Download | |
| Feb 03 2022 | Download | |
| Feb 03 2022 | Download | |
| Jan 12 2023 | Download |

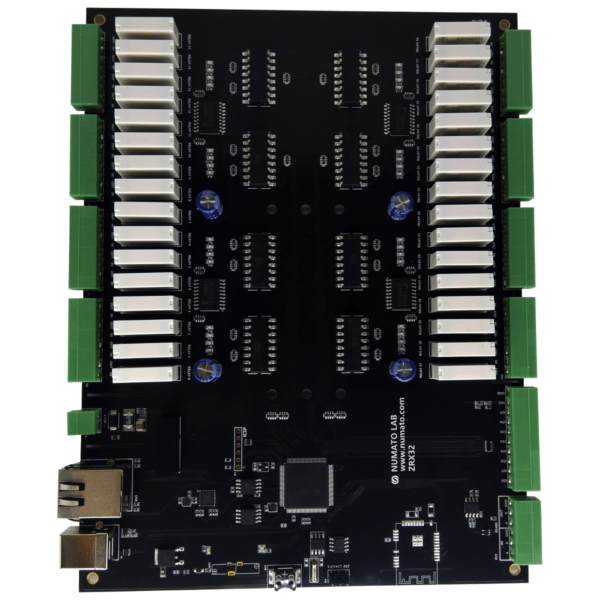

Prodigy ZRX16/ZRX32/ZRX64 is an Input/Output module that supports Modbus RTU over USB and RS485 and Modbus TCP over Ethernet. This product has 16/32/64 Relays (Dry Contacts) and 8 Additional IOs that supports Digital Input, Digital Output and 6 Analog Input functions. The RS485/USB/Ethernet host interface makes connecting this device to any Windows, Linux, Mac machines or embedded computers such as RPi an easy task. Meanwhile, support for industry standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus – RTU/TCP. ZRX16/ZRX32/ZRX64 when RTU model connected to a host computer, is enumerated as a regular serial port. This alleviates the difficulty of working with USB protocol and offers a transparent interface to access the device. ZRX16/ZRX32/ZRX64 acts as a Modbus slave device at slave address 1. Flexible DIN Rail mounting system allows easy installation and removal with screws. ZRX16/ZRX32/ZRX64 supports several features such as Relay Timer, Safety Timer (Watchdog), Programmable Power On State etc..
| Number Of Relays | |
|---|---|
| Relay Type | |
| Max Relay Current Rating |
5A |
| Number Of GPIOs (Max) |
8 |
| IO Voltage Max |
3.3V |
| Analog Inputs |
6 |
| Analog Input Resolution |
12 Bits |
| Host Interface |
Ethernet, USB 2.0 CDC |
| Warranty | |
| Package Contents |
Prodigy ZRX16/ZRX32/ZRX64 – RTU/TCP x1, USB A to B Cable x1, LAN Cable x1(TCP), 12V Power Supply x1 |
