Prodigy ZGX16/ZGX32/ZGX64 is an Input/Output module that supports Modbus RTU over USB and RS485 and Modbus TCP over Ethernet. The USB/Ethernet host interface makes connecting this device to any Windows, Linux, Mac machines or embedded computers such as RPi an easy task. Support of industry standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus – RTU/TCP.
Features
| Title | Date | Download |
|---|---|---|
| Driver for Prodigy | Apr 14 2019 | Download |
| View/Download 3D Model (STEP)-ZGX16 | Apr 13 2019 | Download |
| View/Download 3D Model (STEP)-ZGX32 | Apr 13 2019 | Download |
| View/Download 3D Model (STEP)-ZGX64 | Apr 13 2019 | Download |
| ZGX16 Dimensions | Apr 13 2019 | Download |
| ZGX32 Dimensions | Apr 13 2019 | Download |
| ZGX64 Dimensions | Apr 13 2019 | Download |
| Jan 25 2022 | Download | |
| Nov 04 2022 | Download |

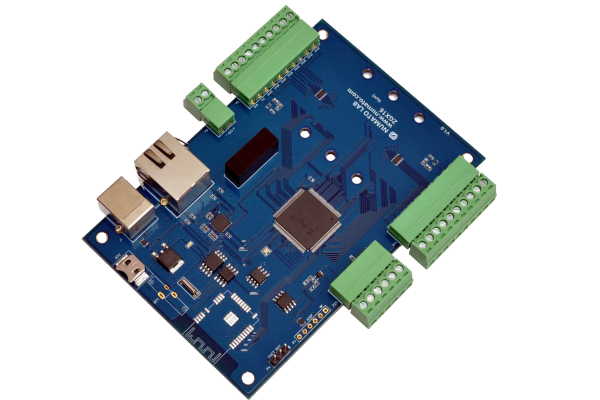

Prodigy ZGX16/ZGX32/ZGX64 is an Digital Input/Output module that supports Modbus RTU over USB and RS485 and Modbus TCP over Ethernet. This product has 16/32/64 GPIO(3.3V) multiplexed with 8/14/32(Max) Analog Inputs that supports. The RS485/USB/Ethernet host interface makes connecting this device to any Windows, Linux, Mac machines or embedded computers such as RPi an easy task. Meanwhile, support for industry standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus – RTU/TCP. ZGX16/ZGX32/ZGX64 when RTU model connected to a host computer, is enumerated as a regular serial port. This alleviates the difficulty of working with USB protocol and offers a transparent interface to access the device. ZGX16/ZGX32/ZGX64 acts as a Modbus slave device at slave address 1. Flexible DIN Rail mounting system allows easy installation and removal with screws. ZGX16/ZGRX32/ZGX64 supports several features such as GPIO Timer, Safety Timer (Watchdog), Programmable Power On State etc..
| Number Of GPIOs (Max) |
16, 32, 64 |
|---|---|
| IO Voltage Max |
3.3V |
| Analog Inputs(Max) |
8, 24, 32 |
| Analog Input Resolution |
12 Bits |
| Host Interface |
Ethernet, USB 2.0 CDC |
| Warranty |
Standard |
| Package Contents |
Prodigy ZGX16/ZGX32/ZGX64 – RTU/TCP x1, USB A to B Cable x1, LAN Cable x1(TCP), 12V Power Supply x1 |
