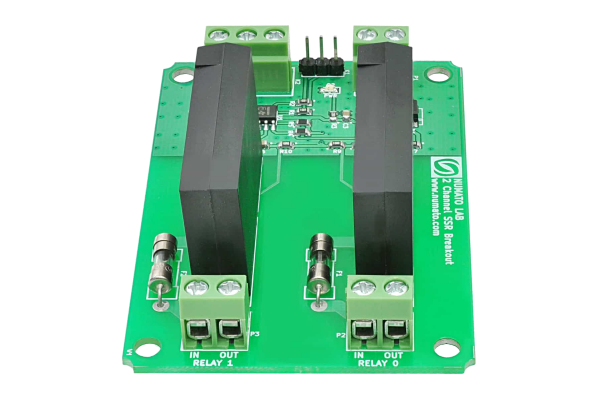

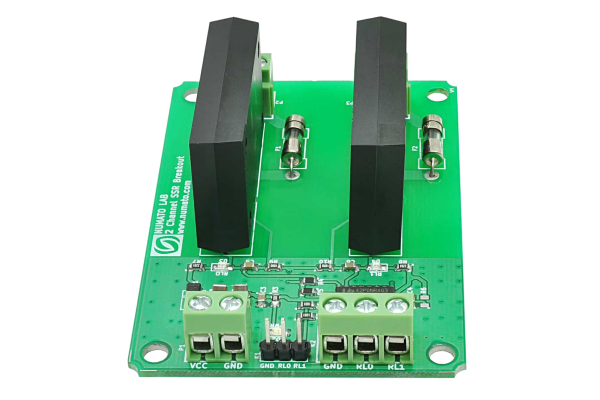

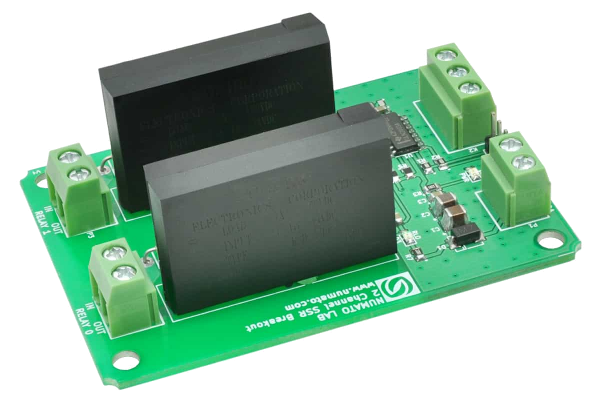

Numato 2 Channel Solid State Relay breakout module is a smart choice for controlling higher current loads from your microcontroller development board, PC parallel port or your favorite Arduino. This board has two on-board Solid State Relays which can switch up to 3A. All relay terminals are accessible through screw terminals which makes wiring up the board very easy. The relays are driven by popular darlington array ULN2003. This product is available for purchase with AC or DC Solid State Relays.
Features
| Title | Date | Download |
|---|---|---|
| User Manual | Feb 14 2018 | Download |
| Aug 30 2018 | Download | |
| Jan 20 2022 | Download | |
| Apr 25 2022 | Download | |
| Nov 10 2022 | Download |
Numato 2 Channel Solid State Relay breakout module is a smart choice for controlling higher current loads from your microcontroller development board, PC parallel port or your favorite Arduino. This board has two on-board Solid State Relays which can switch up to 3A. All relay terminals are accessible through screw terminals which makes wiring up the board very easy. The relays are driven by popular darlington array ULN2003. This product is available for purchase with AC or DC Solid State Relays.
Features
Applications
| Weight | 0.20 lbs |
|---|---|
| Dimensions | 5.00 x 3.00 x 2.00 in |
| Relay Type |
Solid State AC, Solid State DC |
| Number of Relays |
2 |
| Max Relay Current Rating |
3A |
| Relay driver |
ULN2003 |
