| Title | Date | Download |
|---|---|---|
| BPI-M4 User Manual | Mar 30 2022 | Download |
| BPI-M4 Getting Started | Mar 30 2022 | Download |
| May 05 2022 | Download | |
| Sep 14 2023 | Download |

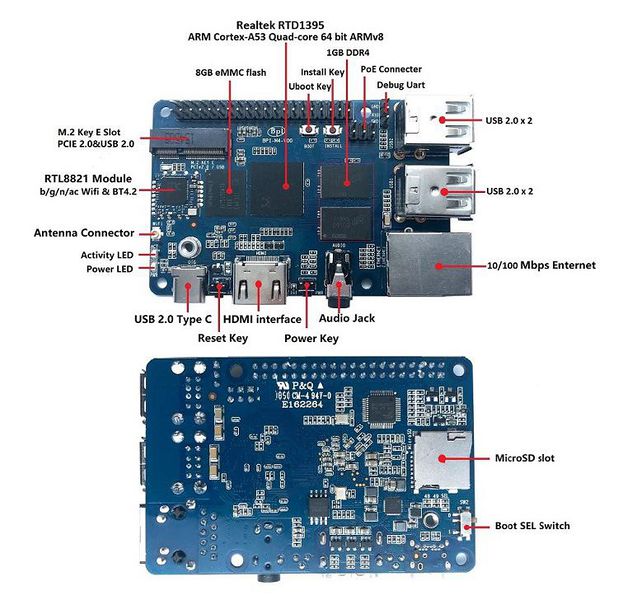

CPU: Realtek RTD1395 ARM Cortex-A53 Quad-Core 64 Bit
GPU: Mali 470 MP4 GPU OpenGL ES 1.1/2.0
Memory: 1 GB DDR4 (optional 2 GB)
Storage: 8G eMMC flash onboard MicroSD slot supports up to 256GB expansion
Network: 10/100 Mbit/s Ethernet Wi-Fi 802.11 b/g/n/AC Bluetooth 4.2
Video Output: HDMI port and multi-channel audio output support 1080P H.264 H.265 2K/4K
Audio Output: 3.5mm jack and HDMI
USB ports: 4 x USB 2.0 ports 1 x USB 2.0 TYPE C
PCIE: M.2 Key E slot PCIE 2.0 and USB 2.0
GPIO: GPIO (x28) Power (+5V, +3.3V and GND) UART, I2C, SPI or PWM
Power Input: 5 volt @2A via Micro USB (TYPE C) or PoE support
Size&Weight: 92x60mm, 48g
OS: Android and Linux
| Language/Technology | IDE/Compiler | Type | OS | Download |
|---|---|---|---|---|
| Download |
