| Title | Date | Download |
|---|---|---|
| BPI-F2P User Manual | Mar 30 2022 | Download |

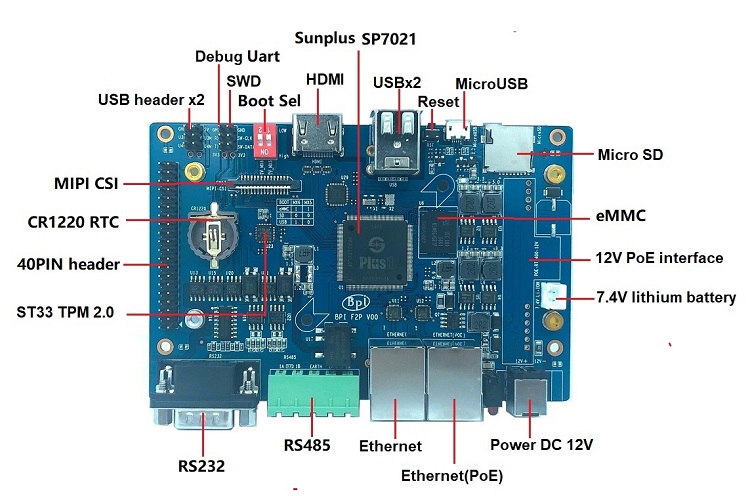

CPU: Quad-core 1GHz Cortex-A7 CPU, plus A926 and 8051 cores
Memory: Built-in 128MB or 512MB DDR3 DRAM
Storage: 8G eMMC flash onboard MicroSD slot
Network: 2x 10/100M Ethernet RS-485 RS-232
Video Output: HDMI 1.4 output
Camera I/F: MIPI CSI connector
USB ports: 2 x USB 2.0 ports. 1 x USB 2.0 OTG
GPIO: GPIO (x28)
Power (+5V, +3.3V and GND) UART, I2C, SPI or PWM
Power Input: 12 VDC @2A PoE(need extra PoE module)
Size&Weight: 130x85mm
OS: Linux
